Research Note · 公开导读版
Precancerous niche remodelling dictates nascent tumour persistence
早期肿瘤能否存留,不只取决于突变本身。本文提出:一部分 SOX9-high 上皮细胞以 EGF-family signals 招募 lamina propria fibroblast,后者装配 FN1-rich scaffold,再反向支持病灶增殖与长期存在。
文献身份与版本
论文作者
G. Skrupskelyte, J. E. Rojo Arias, H. Ajith, Y. Dang, D. Rossetti, S. Han, M. K. S. Tang, M. T. Bejar, B. Colom, J. C. Fowler, K. Murai, W. Knight, D. Aust, M. H. H. Schmidt, J. Jaszai, S. Zeki, A. Noorani, P. H. Jones, S. Rulands, B. D. Simons & M. P. Alcolea
期刊与年份
Nature 653, 242-253 (2026)
版权/许可边界
Open Access,CC BY 4.0;第三方材料仍以原文 credit line 为准。公开导读仅保留必要低分辨率逻辑块,并注明裁剪、压缩与重排。
笔记作者
Morgen · tomorgene.com
当前版本
公开导读版:7 张低分辨率代表图 + 15 个 panel-group 阅读索引;robots noindex,nofollow。
Research Noteearly tumorigenesisfibroblastSOX9EGFRfibronectinscRNA-seq
阅读起点
材料状态:材料审计确认 1 份 canonical 主文、1 份 supplementary methods、15 个 Supplementary Table workbook 和 1 个主图/Extended Data source workbook;审稿材料不进入科学证据链。
一句话模型:genetic stress → SOX9/Tumour 12 + AREG/HBEGF → PDGFRalphalow fibroblast migration/activation → FN1-rich scaffold → epithelial proliferation and persistence。
最重要的阅读提醒:最强证据来自 tumour-stroma sufficiency、Sox9 cKO、Gefitinib 与 FUD 的收敛;CellChat、pseudotime 和人组织仍分别是网络推断、状态推断与横断面外推。
证据链顺序
- Fig.1 定义 Niche+ 命运优势。
- Fig.2 确定 local PDGFRalphalow fibroblast origin。
- Fig.3 解析 Tumour 12/C19 双侧状态并测试 SOX9 necessity。
- Fig.4 建立 EGF-SOX9-FN1 reciprocal loop 与干预结果。
- Fig.5 检查人 ESCC 的空间一致性。
名词解释
术语按机制、模型和数据口径分组,目标是帮助读者回到具体 panel 与 source data,而不是做脱离证据链的词典。
核心机制 读懂主图必备
precancerous niche
早期肿瘤主动建立的支持性基质环境;本文特指紧贴癌前上皮、富含成纤维细胞与 FN1 的 stromal scaffold。
Niche+ / Niche-
按 nascent lesion 是否出现 PDGFRalpha-positive stromal remodelling 分类;它是早期命运分叉,不是肿瘤分期。
Tumour 12 state
pseudotime module 12 富集的上皮应激状态,包含 SOX9、AREG/HBEGF、hypoxia、adhesion 与 ECM-communication programs。
SOX9
Tumour 12 的空间 proxy 与功能节点;Niche+ 接触面更高,条件删除后肿瘤存留和 Niche+ 大小下降。
AREG / HBEGF
Tumour 12 keratinocyte 富集的 EGF-family ligands;AREG 在迁移实验中促进原代 fibroblast 穿膜。
EGF-EGFR signalling
上皮到基质的候选 paracrine 方向;CellChat、蛋白定位、AREG migration 和 Gefitinib 干预共同支持。
FN1 / fibronectin
PDGFRalphalow niche fibroblast 产生的关键 ECM scaffold;可溶 FN1 促上皮增殖,FUD 阻断 fibrillogenesis 后 Niche+ 减少。
reciprocal feedback
SOX9/EGF 招募 fibroblast,fibroblast/FN1 再支持上皮增殖与存留,形成自增强 epithelial-mesenchymal 回路。
pre-CAF
早期 niche fibroblast 有 aYAP、FN1 和 wound-healing/matrisome 程序,但缺少稳定 FAP/VIM/FSP 高表达,尚非成熟 CAF。
tumour persistence
在突变克隆竞争环境中,病灶未被清除而长期保留;不能简单等同于短期体积增大。
field competition
DEN 后正常外观上皮形成突变 clone patchwork,既能促进也能清除 nascent tumour,是研究存留机制的背景。
实验模型/场景 定位因果场景
DEN model
小鼠食管与 forestomach 暴露 diethyl-nitrosamine 8 周;10 天到 1 年观察微小癌前病灶的形成、清除与存留。
KRT6A / KRT17
用于识别早期 squamous tumour 的 keratin markers;并非 SOX9/FN1 回路的特异 readout。
lamina propria
紧贴上皮的疏松结缔组织层,PDGFRalphalow fibroblast 居于此处并形成早期 niche。
submucosae
更深层 stroma,富含 PDGFRalphahigh fibroblast;谱系追踪不支持其跨层成为 nascent niche 的主要来源。
Fucci2a
用 mCherry/mVenus 区分细胞周期阶段,支撑 tumour stroma 使正常上皮获得更高 cycling 的结论。
Confetti lineage tracing
Col1a2-CreER 或 Pdgfra-CreER 随机四色标记 fibroblast,用同色空间聚集推断局部克隆扩增。
Krt14-CreER;Sox9 flox
在 basal keratinocyte 条件删除 Sox9;提供必要性证据,但也可能影响一般上皮应激与增殖。
heterotypic tissue recombination
把未接触致癌物的正常 epithelium 与 tumour-derived stroma 重新组合,直接测试基质充分性。
NSG graft
将不同来源的上皮-基质构建体移植到免疫缺陷小鼠,测试 tumour stroma 是否提高长期 graft survival。
epithelioid
食管组织外植体扩张形成的 3D epithelial culture,用于观察 expanding keratinocyte 与 primary fibroblast 的动态互作。
human ESCC
T1a/T1b/Tis 与化疗后 ypT0 残余异型增生;只提供跨物种空间关联,不等于人群因果或预后验证。
方法与数据口径 回到图注与 source data
whole-mount confocal
保留上皮-基质三维邻接,适合 microscopic lesion;曝光层级与人工 phenotype scoring 需要谨慎解释。
scRNA-seq
17 libraries、91,347 high-quality cells;microdissected control/DEN/tumour 上皮与基质共同进入分析。
Harmony / Seurat
按组织来源整合和聚类;可降低 batch effect,也可能平滑真实 condition difference。
Monocle3 pseudotime
推断 basal-to-tumour 与 basal branch 的状态路径;不是同一细胞的真实时间追踪。
RNA velocity
用 spliced/unspliced counts 支持状态方向;仍是模型推断,依赖动力学假设。
CellChat
根据配体-受体表达与数据库推断 sender/receiver;需要蛋白、空间和干预证据验证。
SHG imaging
无标记检测 collagen-rich ECM fibre density/orientation,补足 FN1 染色之外的 matrix-organization 证据。
targeted DNA sequencing
对 KRT14-negative stroma 捕获 192 个 squamous-cancer genes;阴性结果不能排除 panel 外、CNV 或表观遗传改变。
FUD peptide
functional upstream domain peptide,抑制 fibronectin matrix assembly;可能同时改变多种 ECM-dependent process。
Gefitinib
EGFR inhibitor;体内外均削弱 niche remodelling,但不是 fibroblast-specific genetic test。
source data
MOESM5 的 36 sheets 支撑 Fig.1-4 与 ED1-4/6-10 定量;Supplementary Tables 1-15 共 49 sheets 支撑坐标、QC、DEG 与 pathway。
科学问题与总体模型
在充满竞争性突变克隆的食管上皮中,决定 nascent lesion 被清除还是存留的变量,是否包括病灶主动塑造的微环境?
Genetic stressDEN-induced nascent tumour
Tumour 12SOX9 · AREG/HBEGF
PDGFRalphalow fibroblastmigration · pre-CAF
FN1-rich scaffoldECM assembly · feedback
PersistenceNiche+ survival and growth
可证伪点:若 epithelial Areg/Hbegf、fibroblast Egfr 或 fibroblast Fn1 的细胞类型特异遗传学不能复现药理结果,当前“单一轴”模型需要改写为冗余 ligand/ECM network。

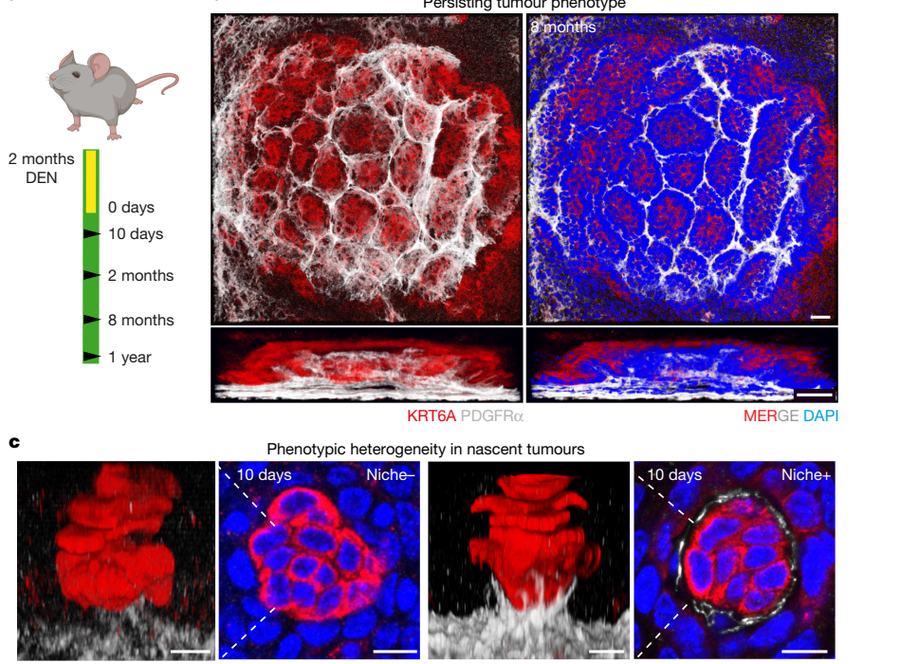

Fig.1 · 早期 stromal phenotype 预示哪些病灶会长期存留
10 天 nascent tumour 已分成 Niche+ 与 Niche-;Niche+ 更增殖、随后更大,并在群体中被选择性保留。
证据角色:建立命运分叉与时间顺序,但本图单独仍是强相关证据。
怎么看
- 先把 Niche+ 读成一个空间 phenotype,而不是预设它已经是 causal cell state。
- 时间富集的关键不是 Niche+ 数量暴增,而是 Niche- 被清除后 Niche+ 相对保留。
- forestomach 的同方向结果降低单一食管位置特异性的解释。
关键控制
同一 DEN tissue 内 Niche-/Niche+/tumour-free 比较10 d-1 y 时间序列forestomach replication
解释边界:人工 phenotype scoring、横断面时间序列与较小动物数,尚不能排除未测量的上皮内在差异。

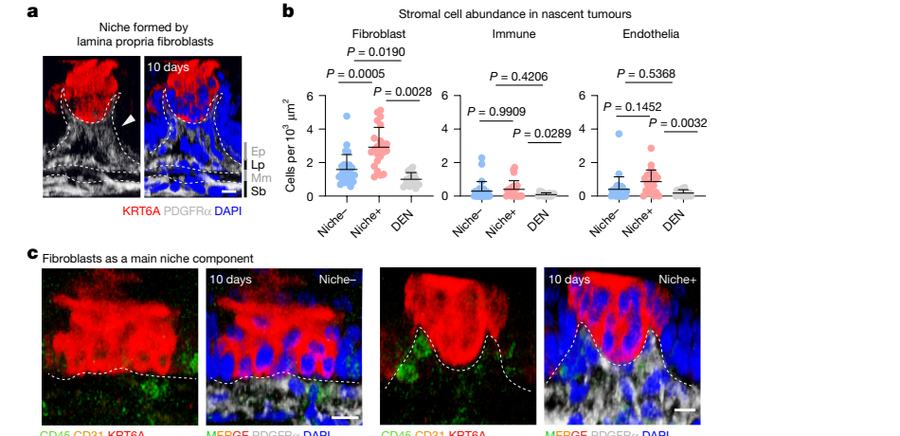

Fig.2 · nascent niche 主要来自 lamina propria PDGFRalphalow fibroblast
早期 Niche+ 增加的是紧贴上皮的 PDGFRalphalow fibroblast,而不是免疫或内皮;Confetti 追踪支持其局部扩增。
证据角色:确定 niche 的细胞组成、空间来源和局部 lineage behavior。
怎么看
- 10-day immune/endothelial abundance 不区分 Niche+/-,因此早期分叉的主角是 fibroblast。
- 同色细胞靠近支持克隆扩增,但颜色有限,不能把同色完全等同于单一祖先。
- 谱系追踪回答来源,不直接证明该 fibroblast population 的功能必要性。
关键控制
DEN/Niche-/Niche+ 三组top-down + side-viewCol1a2 与 Pdgfra 两套 CreER
解释边界:重组效率和 tamoxifen accessibility 是主要技术混杂,仍缺少 barcode 或 cell-type-specific ablation。

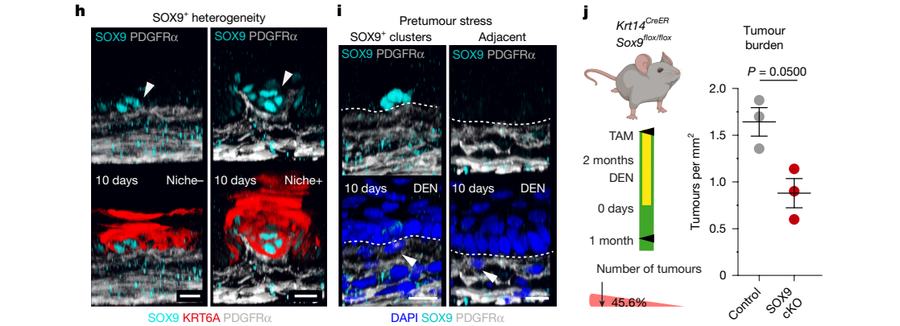

Fig.3 · SOX9-high Tumour 12 与 FN1-high fibroblast 构成双侧状态
scRNA/pseudotime 把 tumour niche 拆成 C19 pro-fibrotic fibroblast 与 Tumour 12 stress keratinocyte;SOX9 删除削弱肿瘤存留。
证据角色:从空间 phenotype 推进到可定位、可扰动的 epithelial/stromal cell states。
怎么看
- Tumour 12 是 module-defined state,SOX9 只是可成像 proxy,不应把两者完全等同。
- 同一 DEN tissue 的 adjacent non-tumour cells 是重要 internal control,可部分控制 carcinogen field effect。
- SOX9 deletion 支持必要性,但也可能改变一般 basal-cell fitness,而不只改变 stromal communication。
关键控制
external control + DEN internal control + tumourprotein-level validationuninduced flox control
解释边界:轨迹 root、module threshold 和 AUCell cutoff 均影响状态定义;条件删除样本量小且无 rescue。
Fig.4 · EGF-SOX9-FN1 轴把上皮应激转化为可存留 niche
CellChat 预测 EGF 向 fibroblast、FN1/ECM 向 keratinocyte;AREG 促迁移,Gefitinib 与 FUD 均减少 Niche+。
证据角色:用表达推断、体外功能与两类体内干预建立机制性贡献。
怎么看
- 先区分 CellChat 的 prediction 与 AREG/Gefitinib/FUD 的 functional evidence。
- FN1 受体、FN1 protein、AREG/HBEGF 和 EGFR 的 sender-receiver 方向与空间结果相互一致。
- 两类药理干预收敛很重要,但小样本和 one-tailed tests 使效应大小仍需复现。
关键控制
0.5/2/10% FBS migration controlsDMSO vehicleFUD scrambled peptide
解释边界:通路存在 ligand/ECM 冗余,药理作用不具细胞类型特异性,也未完成遗传 epistasis/rescue。

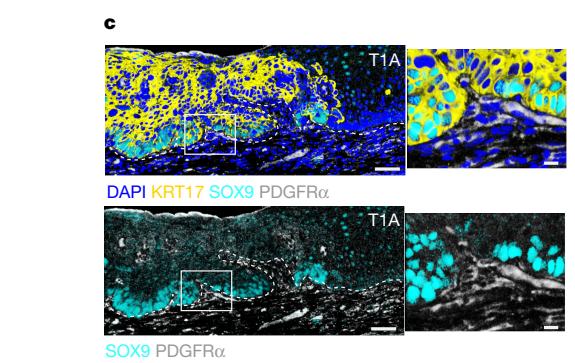

Fig.5 · 人早期 ESCC 复现 SOX9/AREG 与 stromal FN1 的空间邻接
T1a/T1b/Tis 与 ypT0 中,SOX9/AREG 只出现在部分 tumour cells,并与 PDGFRalpha-positive fibroblast 或 FN1-rich stroma 邻接。
证据角色:提供跨物种临床相关性,而非人病灶因果或疗效证据。
怎么看
- 跨物种一致性来自空间 pattern,而不是相同实验可操控性。
- 代表图应与患者 n 分开解释,尤其 Tis/ypT0 各 n=1。
- 化疗后残余组织受 treatment selection 影响,不是 untreated natural history。
关键控制
pathologist-defined adjacent normal不同 early stageschemo-naive 与 post-chemo context
解释边界:样本量和定量有限、横断面且无结局关联,只能支持 human relevance。
Extended Data 精读:代表截图与证据索引
ED1-10 不是装饰性附件:它们分别承担模型自然史、基质充分性、免疫控制、谱系来源、单细胞审计、pre-CAF 边界、mutation control、Tumour 12 定义、SOX9 necessity 与 EGF/FN1 functional boundary。

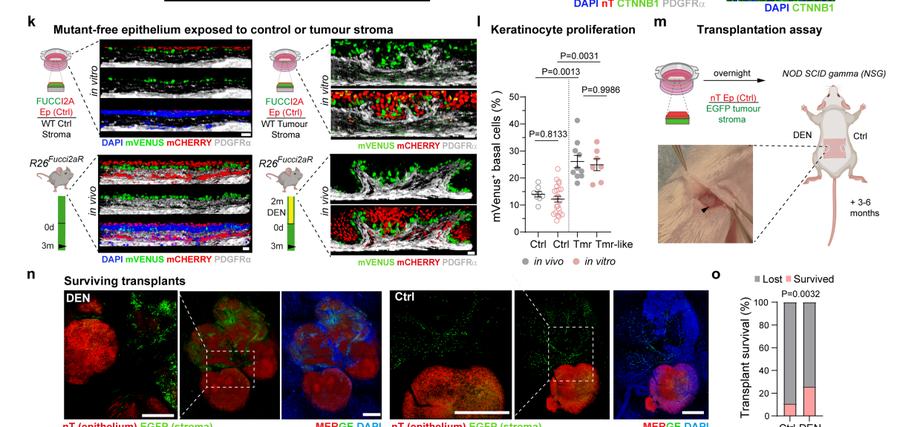

Extended Data Fig.2 · tumour stroma 对正常上皮具有功能充分性

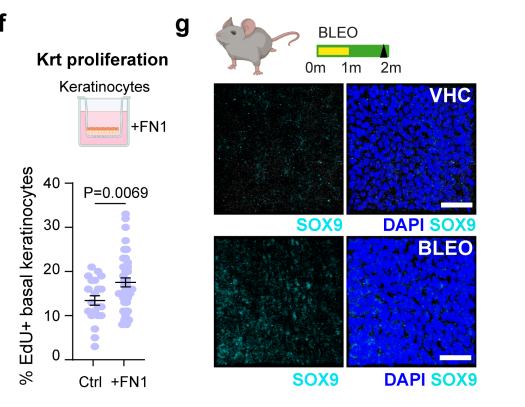

Extended Data Fig.10 · 功能控制界定 EGF-SOX9-FN1 轴,而非一般 fibrosis
其余 Extended Data 证据索引
Extended Data Fig.1- 建立肿瘤先大量形成、随后清除、少数长期存留并偶发进展的基线;KRT6A/KRT17 标记微小病灶。
- 跨时间点是不同动物群体,不是单病灶连续成像。
- 早期 fibroblast proliferation 没有普遍升高,提示 niche 不是简单全局 DEN response。
该逻辑块未在公开页展开;回到 DOI 核对原图Extended Data Fig.3- 定义 stromal layers、显示 aYAP-positive pre-CAF 特征,并在 WT/NSG 中得到相似的 early niche dynamics。
- NSG 结果限制了适应性免疫主导早期分叉的解释。
- 不能据此否定 innate immunity 或后期 immune recruitment。
该逻辑块未在公开页展开;回到 DOI 核对原图Extended Data Fig.4- 用诱导效率、同色最近邻、tumour-lobe boundary 和 layer-specific labelling 审计 fibroblast local expansion。
- 同色聚集支持扩增,但颜色碰撞与 sampling 仍是限制。
- Pdgfra-CreER 的深浅层重组差异受 tamoxifen accessibility 影响。
该逻辑块未在公开页展开;回到 DOI 核对原图Extended Data Fig.5- 展示 punch microdissection、上皮/基质分离、22 clusters、label transfer、curated markers 与 condition maps。
- 2-4 animals pooled,17 libraries;cell count 不能代替独立动物数。
- DEN internal control 可能混入肉眼不可见的小病灶。
该逻辑块未在公开页展开;回到 DOI 核对原图Extended Data Fig.6- Pdgfralow/C19 富集 Fn1、wound-healing matrisome 与 SHG remodelling;FAP/VIM/FSP 和 proliferation 限制成熟 CAF 表述。
- mRNA/protein marker 不完全一致,pre-CAF 更准确。
- 14-month invasive carcinoma 才出现典型 CAF markers,提示阶段转换。
该逻辑块未在公开页展开;回到 DOI 核对原图Extended Data Fig.7- 192-gene capture 显示 tumour stroma mutation burden 接近 controls;后期才出现 vascular/immune recruitment。
- panel 阴性不能排除 CNV、低频 clone、panel 外或 epigenetic change。
- 后期 immune phase 不应反推为 10-day Niche+/- 的起始原因。
该逻辑块未在公开页展开;回到 DOI 核对原图Extended Data Fig.8- Monocle3/RNA velocity、15 modules 与 Tumour 1/12 DEG/GSEA 构成状态定义,并以 protein markers/空间接触验证。
- root、module delta threshold 与 AUCell 80th percentile 是建模选择。
- 轨迹不能替代真实时间或克隆 lineage。
该逻辑块未在公开页展开;回到 DOI 核对原图Extended Data Fig.9- Niche+ 中 SOX9 density/intensity 更高;正常形态 SOX9 cluster 下 fibroblast 更近;Sox9 deletion 缩小 Niche+。
- SOX9 cluster 可能已是超早微病灶,尚非完全正常细胞。
- 条件删除缺少 rescue,不能排除一般 fitness effect。
该逻辑块未在公开页展开;回到 DOI 核对原图
Source Data / Supplementary Tables 索引
16 个 workbook、85 个 sheet 只作为图级定量、单细胞审计和复现地图呈现;本页不复制原始大表,也不把 workbook inventory 冒充 Extended Data 精读。
6 sheets主图定量与因果干预Niche phenotype distribution 与 10 d-1 y tumour diameter。
30 sheetsExtended Data controlsnatural history、EdU、basal density、Fucci cycling 与 graft survival。
15 files · 49 sheetsSupplementary TablesConfetti coordinates、scRNA sample/QC、annotation crosswalk 与 major cell-type markers。
主图定量与因果干预 · 6 sheets
- Fig 1d / Fig 1f
Niche phenotype distribution 与 10 d-1 y tumour diameter。Fig.1time courseNiche
- Fig 2b
DEN/Niche-/Niche+ 中 fibroblast、immune、endothelial abundance。Fig.2cell abundance
- Fig 3j
Sox9 cKO 与 control 的 tumours per mm2。Fig.3Sox9 cKO
- Fig 4e
2% FBS、AREG 与 fibroblast migration replicates。Fig.4AREGmigration
- Fig 4j
vehicle/Gefitinib 与 scrambled/FUD 的 Niche+ density。Fig.4GFTFUD
Extended Data controls · 30 sheets
- ED1-2
natural history、EdU、basal density、Fucci cycling 与 graft survival。ED1ED2sufficiency
- ED3-4
WT/NSG Niche dynamics、Confetti induction 与 layer labelling。ED3ED4lineage
- ED6
C19 enrichment、SHG intensity/alignment 与 fibroblast proliferation。ED6ECMpre-CAF
- ED7
stromal substitutions/Mb、cell-type 与 immune enrichment。ED7mutationimmune
- ED8-9
SOX9 frequency/intensity、fibroblast proximity 与 Sox9 floxed diameter。ED8ED9SOX9
- ED10
serum/AREG migration 与 FN1-treated epithelioid EdU。ED10AREGFN1
Supplementary Tables · 15 files · 49 sheets
- Tables 1-4
Confetti coordinates、scRNA sample/QC、annotation crosswalk 与 major cell-type markers。coordinatesQCannotation
- Tables 5-8
fibroblast clusters、Pdgfralow/high 与 C19 condition DEG。fibroblastC19DEG
- Tables 9-10
192-gene capture bait list 与 immune subtype markers。DNA panelimmune
- Tables 11-14
pseudotime modules、branch delta、Tumour 12 vs 1 DEG、GO/KEGG。trajectoryTumour 12GSEA
- Table 15
primary/secondary antibodies、dilution、catalogue 与 reactivity。antibodyreproducibility
技术路线、数据解释与批判性问题
技术路线
- DEN whole-mount time course + 3D confocal:定义 microscopic Niche phenotype。
- tissue recombination + NSG graft:测试 tumour stroma sufficiency。
- Col1a2/Pdgfra Confetti:追踪 fibroblast spatial origin。
- scRNA-seq + Monocle/RNA velocity + CellChat:定义 C19/Tumour 12 与候选 communication。
- Sox9 cKO + Gefitinib + FUD:从上皮 state、receptor signalling 和 ECM assembly 三个层级干预。
- human ESCC imaging:测试空间 pattern 的跨物种可见性。
不能被 assay 直接回答的事
- pseudotime 不能证明真实 lineage 顺序,CellChat 不能证明配体实际流量。
- Confetti 不能直接证明 fibroblast 功能必要性,targeted panel 不能排除所有 stromal alterations。
- representative human images 不能证明 progression risk 或 preventive efficacy。
统计与复现风险
- 无预先 sample-size calculation、无随机化;多个方向性问题使用 one-tailed tests。
- 部分图展示 technical replicates,解释时必须回到 biological mouse/culture n。
- 肿瘤与正常区外观不同,使部分 quantification 无法完全盲法。
总结与延伸
创新点
- 把 CAF/ECM 概念前移到只有少数细胞的 nascent lesion,并用“是否存留”而非晚期肿瘤体积定义作用。
- 把上皮 stress state、local fibroblast lineage、matrix assembly 与 tumour fate 连成可干预回路。
- 明确区分 early pre-CAF niche 与 later immune/vascular/mature-CAF microenvironment。
可复用研究设计
- 先按空间 phenotype 分层早期病灶,再用群体命运、layer swap、lineage tracing 和多组学解释差异。
- 用 external control + same-field internal control + lesion 三层比较控制 carcinogen field effect。
- 让 computational communication hypothesis 连续经过 protein localization、migration、co-culture、遗传与体内药理验证。
下一步实验
- 低剂量 intravital longitudinal imaging,直接观察同一 Niche+/- lesion 的形成与可逆性。
- epithelial Areg/Hbegf、fibroblast Egfr 与 fibroblast Fn1 条件遗传学,加 rescue/epistasis。
- spatial transcriptomics/proteomics + matrix stiffness mapping,把 Tumour 12、C19 和 FN1 architecture 同位解析。
- 人前癌 longitudinal cohort,检验 SOX9/AREG/FN1 spatial score 是否预测 progression。
